Pneumatic high pressure ball valve

PRODUCTS > Ball Valve > Pneumatic high pressure ball valve
    • 1

Pneumatic high pressure ball valve

公称通径：DN8～DN50(mm), 1/4"-2"
公称压力：10.0、16.0、20.0、25.0MPa
连接方式：Flange type, thread
阀体形式：Three - stage forged body
阀体材质：Carbon steel, stainless steel 304, 316, 316L
阀芯材质：Stainless steel 316L, 316, 304
适用介质：Oil, gas, water, steam, etc. (high pressure)
shared：

Main Performance Parameters

 Nominal diameter

DN8～DN50(mm), 1/4"-2"

 Nominal pressure

10.0、16.0、20.0、25.0MPa

 Connection mode

Flange type, thread

 Body type

Three - stage forged body

 Air pressure

Compressed air 4-7bar (with handwheel)

Body material

Carbon steel, stainless steel 304, 316, 316L

 Valve core material

Stainless steel 316L, 316, 304

Applicable medium

Oil, gas, water, steam, etc. (high pressure)

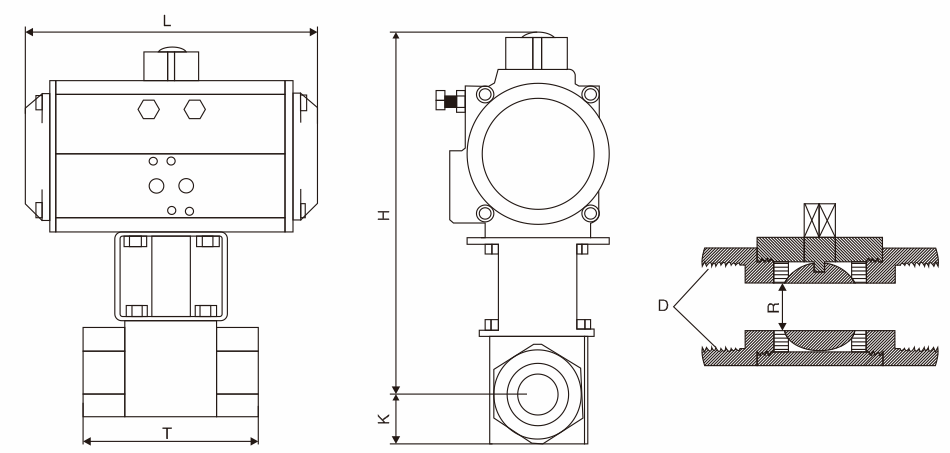

Main Outline Connection Dimention


DN(mm)

Pressure of dimension code :32.0MPa unit :mm



Pneumatic actuator configuration

L

T

H

K

R

D

8

147

72

176

13

6

G1/4"

AT52

10

147

78

176

16

8

G3/8"

AT52

15

147

87

176

19

10

G1/2"

AT52

20

168

99

237

24

14.5

G3/4"

AT63

25

182

114

237

26

19.6

G1"

AT75

32

204

123

249

38

24.8

G11/4"

AT83

40

239

131

285

42

30

G11/2"

AT92

50

268

142

348

50

39.6

G2"

AT105
