Pneumatic screw thread tee ball valve
Pneumatic screw thread tee ball valve
公称通径：DN6~80mm
公称压力：1.6MPa
链接方式：Tee T, tee L
阀体材质：Cast steel, stainless steel 304/316/316l, etc
作用方式：Single and double acting piston type
适用领域：Food, beverage, medicine, chemical and other pure pipeline and industrial environmental protection, water treatment, high-rise buildings, water supply and drainage pipeline for opening and closing or regulating the flow
Product Overview
The pneumatic screw three - way ball valve is by double (single) action pneumatic piston type Actuator and internal thread ball valve. Applicable to food, beverage, medicine,Chemical and other pure pipeline and industrial environmental protection, water treatment, high-rise buildings, to Drain pipe for opening and closing or regulating the flow.

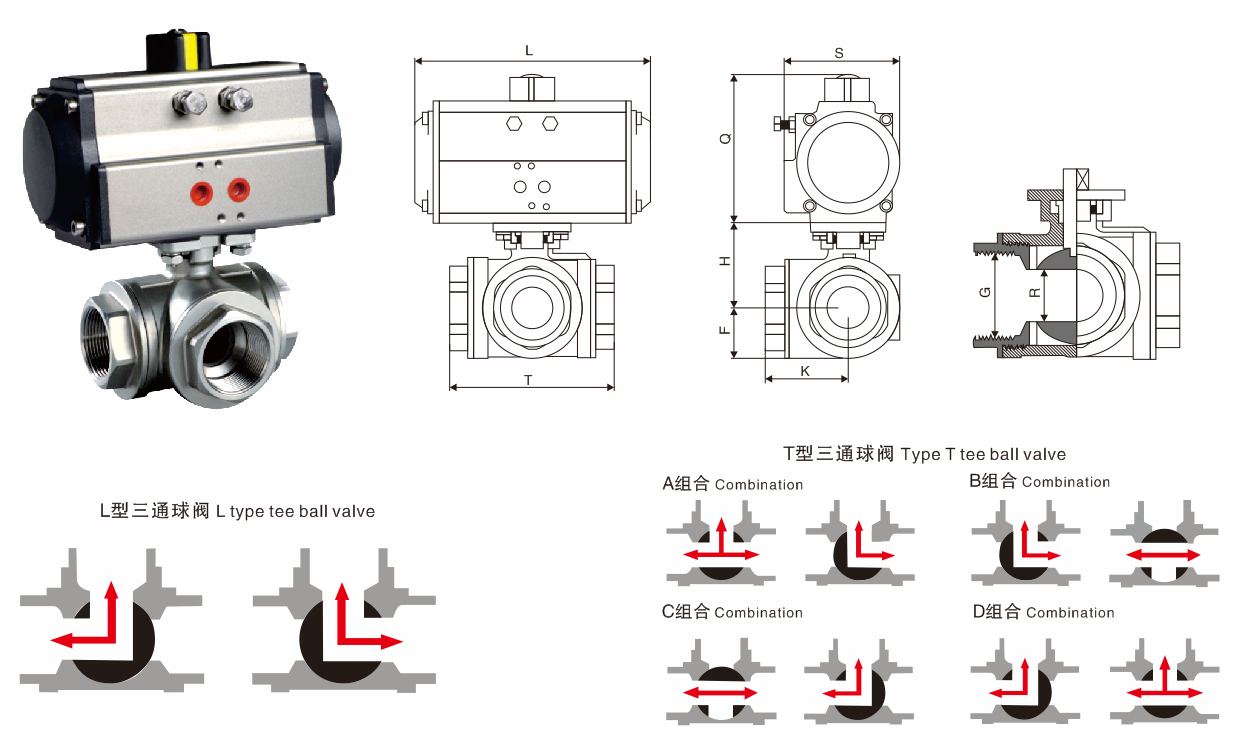

Main Outline Connection Dimention
DN(mm) | Pneumatic actuator configuration | Pressure of dimension label :1.6MPa unit :mm | ||||||||
L | T | H | F | K | Q | R | S | G | ||
8 | AT52Q | 146 | 71 | 37 | 16 | 35 | 98 | 8 | 71.5 | G1/4" |
10 | AT52Q | 146 | 71 | 37 | 16 | 35 | 98 | 10 | 71.5 | G3/8" |
15 | AT52Q | 146 | 71 | 37 | 16 | 35 | 98 | 12 | 71.5 | G1/2" |
20 | AT52Q | 146 | 80 | 41 | 20 | 40 | 98 | 14.5 | 71.5 | G3/4" |
25 | AT63Q | 170 | 87 | 50 | 24 | 43 | 116 | 17 | 83.5 | G1" |
32 | AT75Q | 170 | 114 | 58 | 31 | 57 | 116 | 24 | 96 | G1 1/4" |
40 | AT75Q | 184 | 130 | 72 | 38 | 65 | 128 | 31 | 96 | G1 1/2" |
50 | AT83Q | 211 | 144 | 80 | 45 | 72 | 136 | 36 | 104 | G2" |
65 | AT92Q | 265 | 186 | 98 | 58 | 93 | 146 | 47 | 109 | G2 1/2" |
80 | AT105Q | 275 | 206 | 109 | 69 | 103 | 153 | 60 | 125 | G3" |
