气动丝扣球阀
气动丝扣球阀
公称通径：DN6~100mm
公称压力：1.6~6.4MPa 1000WOG
工作温度：常温型：-20℃~80℃(丁腈橡胶O型圈
适用温度：PTFE≤150℃、PPL≤300℃、金属密封≤425℃
链接方式：螺纹NPT、RC、BSPT及BW SW等
阀体材质：铸钢、不锈钢304/316/316L等
作用方式：双作用活塞式、单作用弹簧复位式
主要性能参数
所配置气动执行机构技术参数 Technical parameters of the configured pneumatic actuator | 阀体主要技术参数 Main technical parameters of valve body | ||
气缸类型 Cylinder type | GT系列、AT系列、AW系列 GT series, AT series, AW series | 阀门类型 Valve type | 二片式、三片式 Two-piece type and three-piece type |
作用方式 Work way | 双作用活塞式、单作用弹簧复位式 Double acting piston type, single acting spring return type | 阀门型号 Valve type | Q611F/N/PPL/H Q661 |
气源压力 Air pressure | 4~8Bar | 连接方式 Connection mode | 螺纹NPT、RC、BSPT及BW SW等 Thread NPT, RC, BSPT and BW SW, etc |
工作介质 Working medium | 干燥、清洁不含腐蚀气体 Dry and clean without corrosive gas | 公称通径 Nominal diameter | DN6~100mm |
工作温度Working temperature | 常温型：-20℃~80℃(丁腈橡胶O型圈) Room temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings) | 公称压力 Nominal pressure | 1.6~6.4MPa 1000WOG |
高温型：-20℃~160℃(氟橡胶O型圈) High temperature type: - 20 ℃ to 160℃ (fluorine rubber O-rings) | 阀体材质 Body material | 铸钢、不锈钢304/316/316L等 Cast steel, stainless steel 304/316/316l, etc | |
动作范围 Range of motion | 0~90°±5° | 球体材质 Ball material | 不锈钢304/316/316L等 Stainless steel 304/316/316l etc |
接口螺纹 Interface thread | GT52~GT83 G1/8" | 阀座密封 Seat tightness | PTFE、PPL、金属材料密封等 Metal material seal, etc |
GT110~GT210 AT52~AT210 G1/4" | 适用温度 Suitable temperature | PTFE≤150℃、PPL≤300℃、金属密封 Metal seal≤425℃ | |
阀位信号 Valve position signal | 定位器：4~20mA/回信器：全开全关信号 Locator: 4~20mA/reply: full ON/OFF signal | 适用介质 Applicable medium | 水、蒸汽及油品等腐蚀性和非腐蚀性介质 Water, steam, oil corrosion and the corrosion medium, etc |

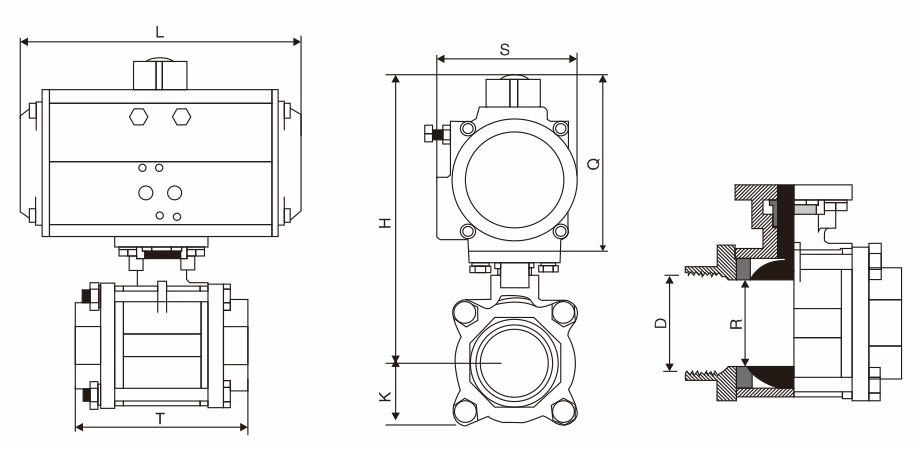

主要外形连接尺寸
所配置气动执行机构技术参数 Technical parameters of the configured pneumatic actuator | 阀体主要技术参数 Main technical parameters of valve body | ||
气缸类型 Cylinder type | GT系列、AT系列、AW系列 GT series, AT series, AW series | 阀门类型 Valve type | 二片式、三片式 Two-piece type and three-piece type |
作用方式 Work way | 双作用活塞式、单作用弹簧复位式 Double acting piston type, single acting spring return type | 阀门型号 Valve type | Q611F/N/PPL/H Q661 |
气源压力 Air pressure | 4~8Bar | 连接方式 Connection mode | 螺纹NPT、RC、BSPT及BW SW等 Thread NPT, RC, BSPT and BW SW, etc |
工作介质 Working medium | 干燥、清洁不含腐蚀气体 Dry and clean without corrosive gas | 公称通径 Nominal diameter | DN6~100mm |
工作温度Working temperature | 常温型：-20℃~80℃(丁腈橡胶O型圈) Room temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings) | 公称压力 Nominal pressure | 1.6~6.4MPa 1000WOG |
高温型：-20℃~160℃(氟橡胶O型圈) High temperature type: - 20 ℃ to 160℃ (fluorine rubber O-rings) | 阀体材质 Body material | 铸钢、不锈钢304/316/316L等 Cast steel, stainless steel 304/316/316l, etc | |
动作范围 Range of motion | 0~90°±5° | 球体材质 Ball material | 不锈钢304/316/316L等 Stainless steel 304/316/316l etc |
接口螺纹 Interface thread | GT52~GT83 G1/8" | 阀座密封 Seat tightness | PTFE、PPL、金属材料密封等 Metal material seal, etc |
GT110~GT210 AT52~AT210 G1/4" | 适用温度 Suitable temperature | PTFE≤150℃、PPL≤300℃、金属密封 Metal seal≤425℃ | |
阀位信号 Valve position signal | 定位器：4~20mA/回信器：全开全关信号 Locator: 4~20mA/reply: full ON/OFF signal | 适用介质 Applicable medium | 水、蒸汽及油品等腐蚀性和非腐蚀性介质 Water, steam, oil corrosion and the corrosion medium, etc |
