主要性能参数
所配置电动执行机构技术参数 Technical parameters of the configured electric actuator | 阀体参数 Body parameters | ||
电源 Power Supply | AC110、220、380V/DC24、220V | 公称通径 Nominal diameter | DN15~50mm |
输出力矩 Output torque | 50N·m~2000N·m | 公称压力 Nominal pressure | PN1.6、2.5、4.0、6.4MPa |
任选功能 Optional function | 开关型、触点型、开度信号、智能型 Switch type、contact type、opening signal、intelligent type | 阀轴材质 Valve shaft material | 不锈钢 Stainless steel |
动作范围 Range of motion | 0~90°±5° | 阀体材质 Body material | 球墨铸铁、碳钢、304/316/316L不锈钢 Ductile iron, carbon steel, 304/316/316l stainless steel |
动作时间 Action time | 15秒/30秒/60秒 15s/30s/60s | 球体材质 Ball Body material | 304/316/316L不锈钢 Stainless steel |
环境温度 Ambient temperature | -30℃~60℃ | 阀座密封 Seat Tightness | PTFE、PPL、金属密封 Metal seal |
手动操作 Manual operation |
附带手柄操作 Accessory handle operation | 温度 Temperature | PTFE≤180℃ 、 PPL≤350℃、金属密封 Metal seal≤450℃ |
限位 Limit | 电气、机械二重限位 Electrical and mechanical double limit | 适用介质Applicable medium |
水、石油、硝酸类、醋酸类、粘性流体、浆料、强氧化性介质等 Water, petroleum, nitric acid, acetic acid, viscous fluid, slurry, strong oxidizing medium, etc |
防护等级 Protection level | IP-67(防爆外壳:Exd ll BT4IP67可选) IP-67 (Explosion-proof Shell: Exd ll BT4IP67 Optional) | ||
输入信号 Input signal | 0-10,1-5VDC/4-20mA(智能型) 0-10,1-5VDC/4-20mA (Intelligent) | 特点 Characteristic | 连线简单、流向切换、阻力小、动作稳定 Simple connection, flow direction switching, low resistance and stable movement |

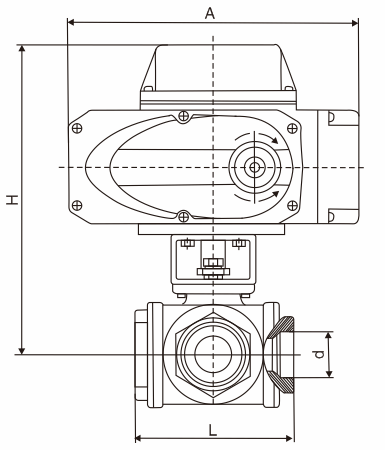

主要外形连接尺寸
DN | A | H | L | D |
15 | 157 | 200 | 79 | 15 |
20 | 157 | 207 | 88 | 20 |
25 | 157 | 237 | 108 | 25 |
32 | 157 | 242 | 124 | 32 |
40 | 208 | 277 | 135 | 40 |
50 | 208 | 308 | 164 | 50 |
