主要性能参数
所配置电动执行机构技术参数 Technical parameters of the configured electric actuator | 阀体主要技术参数 Main technical parameters of valve body | ||
执行电源Executive powersupply | AC220V AC110V AC380V DC24C | 阀体形式 type of body | 二片式 三片式 Two-piece and three-piece |
输出扭矩 Output torque | 30N.M~2000N.M | 阀门型号 Valve type | Q611F/N/PPL/H Q661 |
动作范围 Range of motion | 0~90°±5° | 连接方式 Connection mode | 螺纹NPT、RC、BSPT及BW SW等 Thread NPT, RC, BSPT and BW SW etc |
动作时间 Action time | 15秒/30秒/60秒/100秒 15 seconds/30 seconds/60 seconds/100 seconds | 公称通径 Nominal diameter | DN6~100mm |
环境温度 Ambient temperature | -30℃~60℃ | 公称压力 Nominal pressur | e 1.6~6.4MPa 1000WOG |
手动操作 Manual operation | 附带手动操作 Incidental manual operation | 阀体材质 Body material | 铸钢、不锈钢304/316/316L等 Cast steel, stainless steel 304/316/316L, etc |
执行限位 Execution limit | 电气、机械二重限位 Electrical and mechanical double limit | 球体材质 Ball Body material | 不锈钢304/316/316L等 Stainless steel 304/316/316L etc |
防护等级 Protection level | IP67 | 阀座密封 Seat Tightness | PTFE、PPL、金属材料密封等 PTFE, PPL, metal sealing, etc |
输入信号 Input signal | 4~20mA/1-5VDC | 适用温度 Applicable temperature | PTFE≤150℃、PPL≤300℃、金属密封≤425℃ PTFE <150 C, PPL <300 C, metal seal <425 C |
任选功能 Optional function | 开关型、触点型、开度信号、智能调节型Switch type, contact type, opening signal, intelligent regulation type | 适用介质 Applicable medium | 水、蒸汽及油品等腐蚀性和非腐蚀性介质 Corrosive and non-corrosive media such as water, steam and oil |

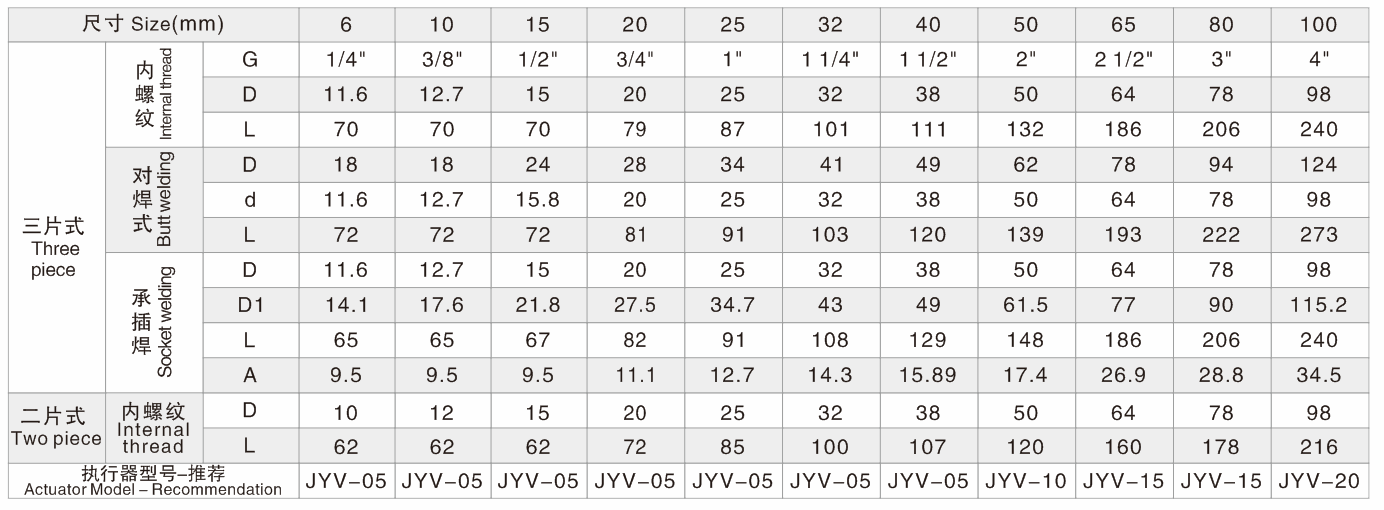

主要外形连接尺寸
