电动高压球阀

公称压力 Nominal pressure

PN10.0、16.0、20.0、25.0MPa

连接方式 Connection mode

法兰式、螺纹连接 Flanged and threaded connection

阀体形式 Type of body

三段式锻造阀体 Three-stage forged valve body

电源电压 Supply voltage

AC110V、AC220V、AC380V（其他定制DC24等）

AC110V, AC220V, AC380V (other customized DC24, etc.)

动作范围 Range of motion

0～90°

阀芯结构 Valve core structure

O型球体阀芯

O-Spherical Valve Core

适用介质 Applicable medium

水、蒸汽、环保处理、腐蚀性介质等

Water, steam, environmental protection treatment, corrosive media, etc

阀体材质 Body material

碳钢、不锈钢304、316

Carbon steel, stainless steel 304, 316

控制方式 Control mode

开关切断式(两位开关控制)、智能调节型(4-20mA模拟信号)

Switch-off (two-switch control) and intelligent regulation (4-20mA analog signal)

管螺纹

Pipe thread

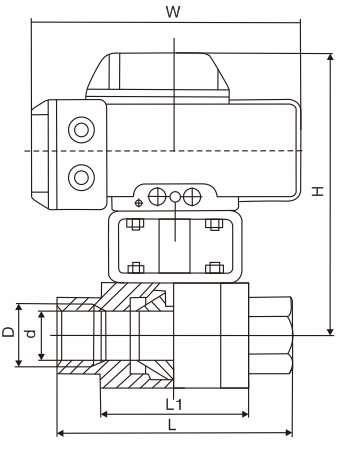

尺寸 Size(mm)

管螺纹

Pipe thread

尺寸 Size(mm)

d

L

H

W

E

H

W

SW

L

8

1/4"

11

70

43

108

42.5

-

-

-

-

70

10

3/8"

11

70

43

108

42.5

-

-

-

-

-

15

1/2"

11

85

43

108

42.5

1/2"

66

130

41

85

20

3/4"

14

95

45.5

146

47.5

3/4"

77

180

46

95

25

1"

21

105

59.5

146

52.5

1"

82

180

55

105

32

1 1/4"

25

120

64.5

146

60

1 1/4"

115

300

70

120

40

1 1/2"

32

130

76

254

65

1 1/2"

120

300

80

130

50

2"

38

150

81

254

75

2"

130

300

100

150
