主要性能参数
阀体形式 Type of body | 二通式 Two general formula |
公称通径 Nominal diameter | DN15~100mm |
公称压力 Nominal pressure | PN1.0MPa |
连接形式 Connection form | 快装式(卡箍式)、焊接式、螺纹式 Fast-loading (clamp type),welding type and threaded type |
适用温度 Applicable temperature | PTFE≤180℃ |
适用介质 Applicable medium | 啤酒、葡萄酒、生物工程、食品、制药、饮料、乳品等 Beer, Wine, Bioengineering, Food, Pharmaceutical, Beverage,Dairy, etc |
产品特点 Product characteristics | 安全卫生、密封好、使用寿命长 Safety and hygiene, good sealing and long service life |

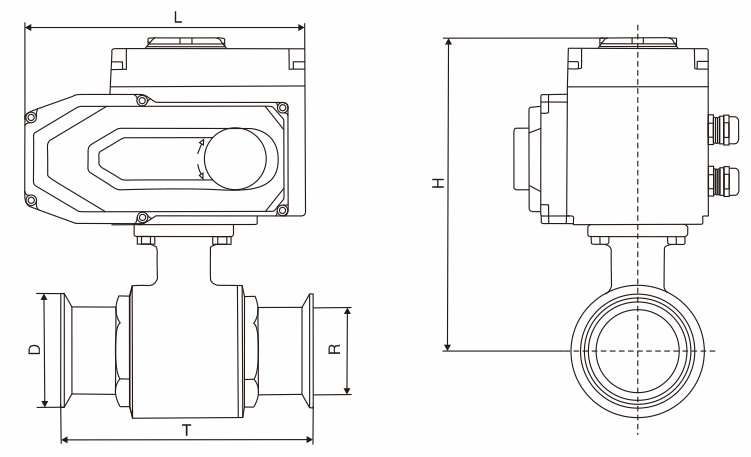

主要外形连接尺寸
公称通径Nominal diameter | 尺寸标注代号 压力:1.6MPa 单位:mm Dimension labeling code pressure: 1.6 MPa unit: mm |
电动执行器配型Electric actuator configuration | ||||
L | H | T | R | D | ||
DN15 | 160 | 147 | 100 | 19 | 50.5 | AX-05B |
DN20 | 160 | 147 | 105 | 25 | 50.5 | AX-05B |
DN25 | 160 | 153 | 120 | 32 | 50.5 | AX-05B |
DN32 | 200 | 193 | 136 | 38 | 50.5 | AX-10B |
DN40 | 200 | 196 | 160 | 51 | 64 | AX-10B |
DN50 | 200 | 225 | 170 | 63 | 77 | AX-10B |
DN65 | 252 | 260 | 196 | 76 | 91 | AX-20B |
DN80 | 252 | 288 | 235 | 89 | 106 | AX-40B |
DN100 | 252 | 333 | 270 | 102 | 119 | AX-60B |
