主要性能参数
所配置气动执行机构技术参数 Technical parameters of the configured pneumatic actuator | 阀体主要技术参数 Main technical parameters of valve body | ||
气缸类型 Cylinder type | GT系列、AT系列 GT series, AT series | 阀门类型 Valve type | 中线式软密封蝶阀 Middle line soft seal butterfly valve |
作用方式 Work way | 双作用活塞式、单作用弹簧复位式 Double acting piston type, single acting spring return type | 阀门型号 Valve type | D671X/F |
气源压力 Air pressure | 4~8Bar | 连接方式 Connection mode | 对夹式 Wafer type |
工作介质 Working medium | 干燥、清洁不含腐蚀气体 Dry and clean without corrosive gas | 公称通径 Nominal diameter | DN40~300mm |
工作温度Working temperature | 常温型:-20℃~80℃(丁腈橡胶O型圈) Room temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings) | 公称压力 Nominal pressure | 0.6~1.6MPa |
高温型:-20℃~160℃(氟橡胶O型圈) High temperature type: - 20 ℃ to 160℃ (fluorine rubber O-rings) | 阀体材质 Body material | RPP、PVDF、CPVC、UPVC等 Etc | |
动作范围 Range of motion | 0~90°±5° | 蝶板材质 Butterfly material | RPP、PVDF、CPVC、UPVC等 Etc |
接口螺纹 Interface thread | GT52~GT83 G1/8" | 阀座密封 Seat tightness | EPDM、FPM及氟橡胶等 And fluorine rubber, etc |
GT110~GT210 AT52~AT210 G1/4" | 适用温度 Suitable temperature | EPDM≤80℃氟橡胶 Fluorine rubber≤120℃ | |
阀位信号 Valve position signal | 定位器:4~20mA/回信器:全开全关信号 Locator: 4~20mA/reply: full ON/OFF signal | 适用介质 Applicable medium | 水、蒸汽及油品等腐蚀性和非腐蚀性介质 Water, steam, oil corrosion and the corrosion medium, etc |

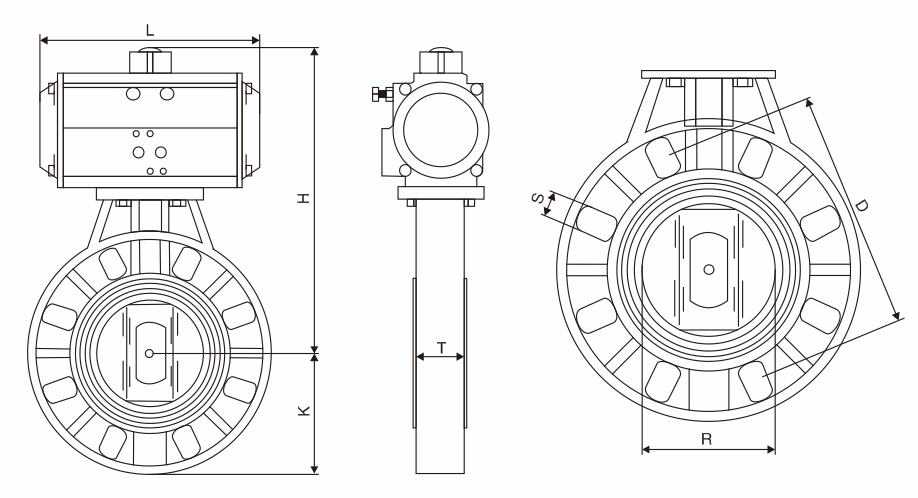

主要外形连接尺寸
DN(mm) | 尺寸标注代号 压力:1.0MPa 单位:mm Dimension code pressure :1.0MPa unit :mm | 气动执行器配型Pneumatic actuators matches | ||||||
L | T | H | K | R | S | D | ||
40 | 147 | 42 | 220 | 79.5 | 45.3 | 4*Φ18 | 110 | AT52 |
50 | 147 | 42 | 235 | 82.5 | 56.5 | 4*Φ18 | 125 | AT52 |
65 | 168 | 44.7 | 245 | 92.5 | 69.5 | 4*Φ18 | 145 | AT63 |
80 | 182 | 45 | 260 | 100 | 79.5 | 8*Φ18 | 160 | AT75 |
100 | 204 | 51.2 | 280 | 114.5 | 102.5 | 8*Φ18 | 180 | AT83 |
125 | 238 | 54.4 | 322 | 128.5 | 130 | 8*Φ18 | 210 | AT92 |
150 | 268 | 55 | 374 | 142.5 | 152 | 8*Φ18 | 240 | AT105 |
200 | 301 | 58.8 | 428 | 171.5 | 203 | 8*Φ23 | 295 | AT130 |
250 | 390 | 65.7 | 482 | 205.5 | 255 | 8*Φ23 | 350 | AT140 |
300 | 458 | 76 | 574 | 245 | 309.5 | 12*Φ23 | 400 | AT160 |
