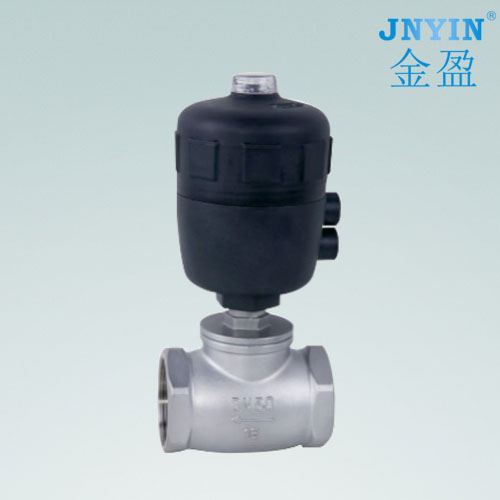

T pneumatic Angle seat valve
T pneumatic Angle seat valve
公称压力：0~1.6MPa
介质：steam, gas, liquid, viscous or corrosive fluid
介质温度：-20~+200℃
环境温度：-10~+80℃
阀体材质：Stainless steel 304 or 316
密封材料：High-grade imported PTFE
优点：maintenance-free, easy installation, low energy consum-ption, large flow, small flow resistance, no water hammer
Advantages
The Q5-T Series 2-position 2-way
fluid control valve is a novel control valve developed by our company,
The valve is low in starting pressure, highly flexible in open and
close, good in sealing property and without the water leakage.
Main Outline Connection Dimention
Body material | Threaded inner boreDN | Actuator size ΦD(mm) | Body length L(mm) | Kv Value （m3 /n) | Pipe pressure at highest temperature | Pilot pressure | Control pressure | Flow direction |
CF8 | DN15 | Φ50 | 54 | 3.9 | 180°≤16bar | 3 | 2.5-5 | Underseat |
CF8 | DN20 | Φ50 | 63 | 7.5 | 180°≤16bar | 3 | 2.5-5 | Underseat |
CF8 | DN25 | Φ50 | 75 | 17 | 180°≤16bar | 3 | 2.5-5 | Underseat |
CF8 | DN32 | Φ63 | 85 | 25 | 180°≤16bar | 3.5 | 2.5-5 | Underseat |
CF8 | DN40 | Φ63 | 99 | 40 | 180°≤16bar | 3.5 | 2.5-5 | Underseat |
CF8 | DN50 | Φ63 | 114 | 50 | 180°≤16bar | 4 | 2.5-5 | Underseat |
CF8 | DN65 | Φ80 | 129 | 65 | 180°≤16bar | 4 | 2.5-5 | Underseat |
CF8 | DN80 | Φ100 | 200 | 110 | 180°≤16bar | 4 | 2.5-5 | Underseat |
CF8 | DN100 | Φ100 | 230 | 135 | 180°≤16bar | 4 | 2.5-5 | Underseat |
